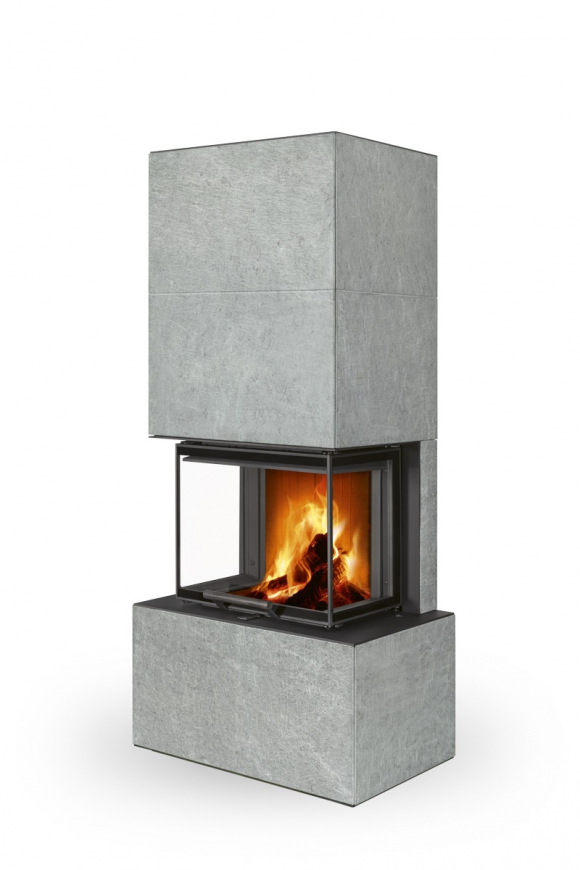

LUCERIA CS Serpentine
LUCERIA CS Serpentine – popular Design fireplace now available in more compact SLIM version. This model combines the best features of wood heaters. Just like a freestanding stove, it allows quick installation and connection to the chimney. In addition, its concept also represents the advantages of a fireplace insert - especially an elegant sliding door, which allows the view of the flames from three sides.
- compact design with 3-sided view of the flames
- efficient air-wash system for keeping the glass clean
- practical pull-out system for chamber maintenance
- easy control of air supply
- external air connection possible from bottom or rear side
- elegant black handle
- serpentine tiles with accumulation capacity
- resistant chamotte burning chamber
Technical parameters
| height | 1778 mm |
| width | 790 mm |
| depth | 510 mm |
| door height | 457 mm |
| door width | 554 mm |
| door depth | 346 mm |
| weight | 357 kg |
| regulated output | 3,9-10,0 kW |
| flue outlet | 150 mm |
| external air inlet | 125 mm |
| axis height of rear outlet | 1567 mm |
| chimney draft | 12 Pa |
| efficiency | 80,0 % |
| average wood consumption | 2,3 kg/h |
|
|
|
Order code
- LUC CS 02
